Filling

Big bales Dosage Bunker DB40

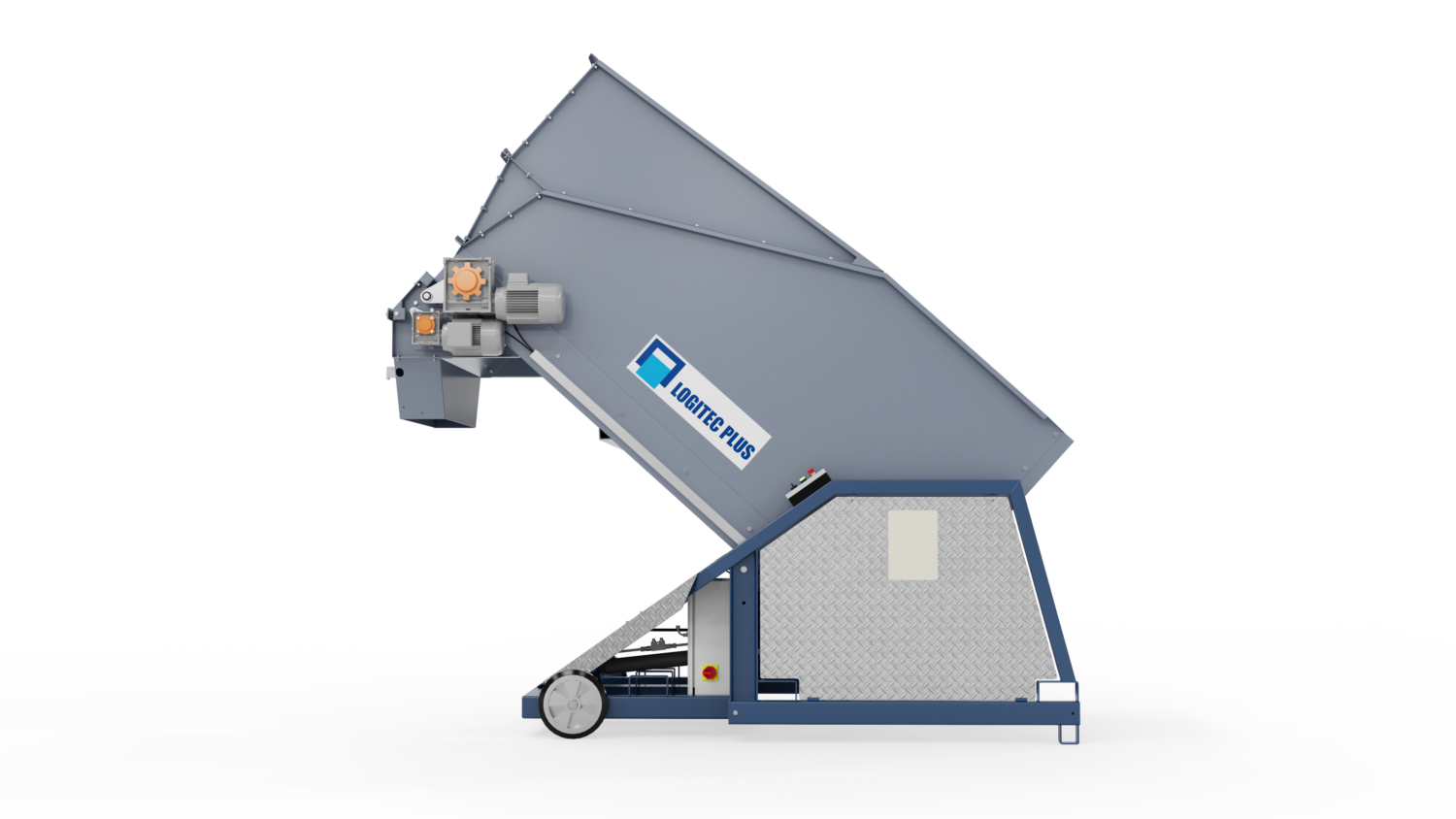

The Big Bale Dosage Bunker DB40 is a high-quality machine that provides a perfect solution for processing compressed big bales of up to 2.60m high. The DB40 brings back the original volume of the substrate as it was before compression, without affecting its structure. The machine is easy to move with a pallet jack or forklift. The mobile installation can be used in combination with almost all brands of potting machines and tray fillers and is suitable for all sizes of big bales. Another advantage is, that it is low on maintenance and can be equipped with many options to simplify the work process.

Advantages

  • Mobile installation
  • Suitable for all sizes of big bales
  • Maximum output volume
  • Available in all common voltages
  • Low depreciation
  • Suitable for all types of potting machines and tray fillers
  • No loss of structure and volume

Dimensions

Without extension plates
Transport position: 3230 x 1555 x 2150 mm
Operating position: 2970 x 1555 x 2420 mm
Loading position: 2400 x 1555 x 2630 mm
Wit extension plates
Transport position: 3230 x 1555 x 2755 mm
Operating position: 2970 x 1555 x 3090 mm
Loading position: 2400 x 1555 x 2720 mm

Specifications

Brand: Logitec Plus
Model: Big Bale Dosage Bunker DB40
Processing time: Big bale of 4.5m3 in approx.  8min
Weight: 1090-1280 kg (depending on options)
Max height of big bales: 2600 mm (with set of extension plates)
Max load: 1400 kg
Electric power: Standard DB40 total 3,3KW (1 x 2,2 KW + 1 x 1,1KW). 400V/3 Phase/50HZ. With optional wooler/breaker of total 4.05KW (+ 1 x 0,75KW) 400V/3 Phase/50HZ. (other voltages upon request)

Options

This can also be a text block. For example with a list of bullets:

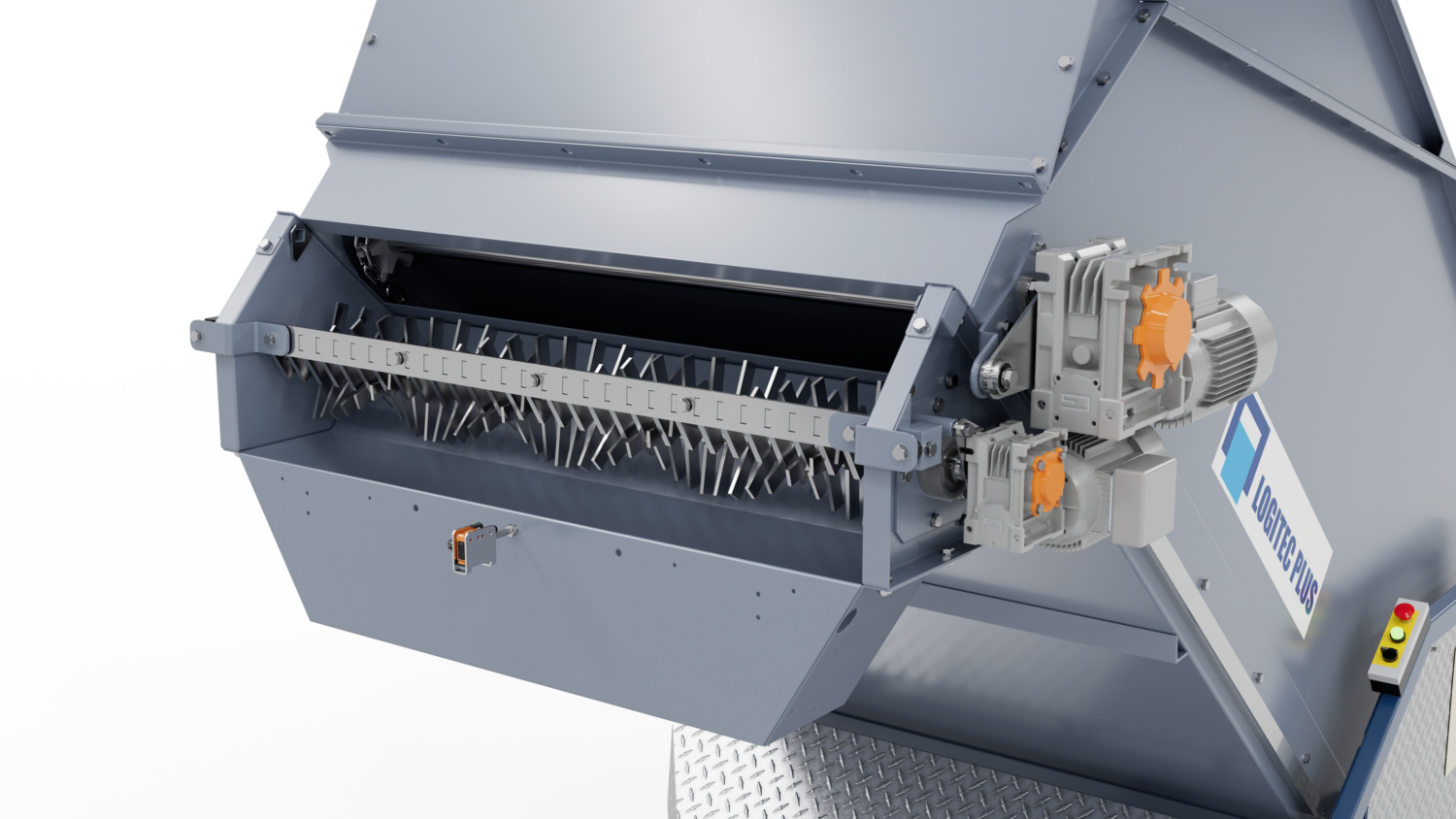

  • Wooler/Breaker
  • Water dosage system (single, double, triple version)
  • Set of extension plates for big bales >2.25m high
  • Set of large rubber wheels for unpaved terrain
  • Set of swiveling wheels for easier maneuvering
  • Various voltages
  • Plate for processing partial bales
  • Hinged transport bar for easier maneuvering
  • Chain protection unit
